P4_L0_document

信号解释

RegDst（寄存器写入地址）
- 2’b00: RT
- 2’b01: RD
- 2’b11: 5’h1f
- default: 5’b0
Mem2Reg（寄存器写入数据）
- 2’b00: alu_c
- 2’b01: dm_data
- 2’b10: pc + 32’d4
- default: 32’b0
ALUSrc（alu的b操作数选择）
- 1’b0: grf_RD2
- 1’b1: ext_ext32
- default: 32’b0
ALU_F（ALU计算方式）
- 4’b0000: add
- 4’b0001: sub
- 4’b0010: or
- 4’b0011: SL16 (lui)
- 4’b0100: SLL (补0逻辑左移)
- 4’b0101: SRL (补0逻辑右移)
- 4‘b0110: SRA (算数右移)
ExtOp (扩展操作)
- 2’b01: 0扩展
- 2‘b10: 算术扩展（符号位）
- 2’b11: 1扩展

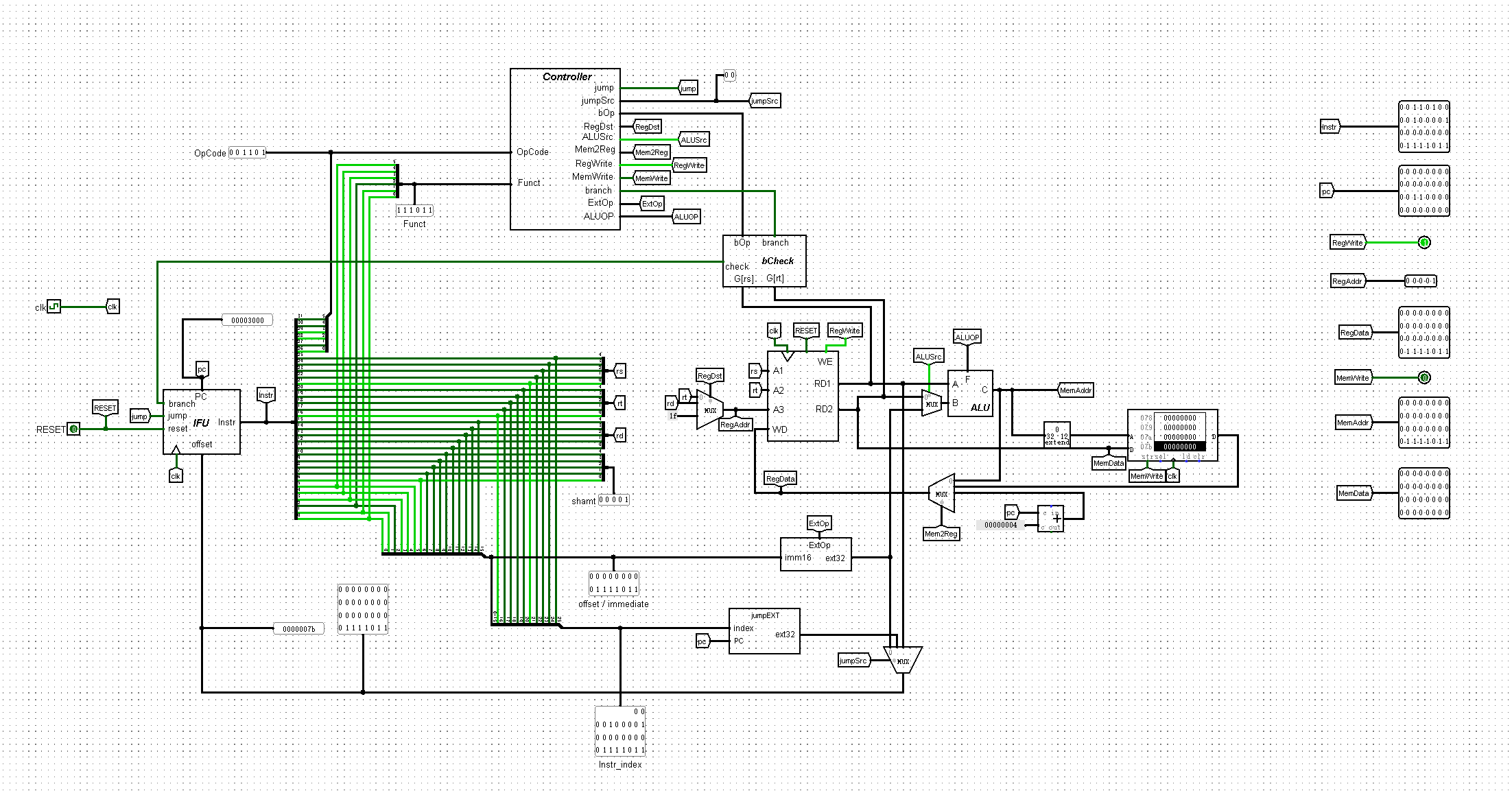

设计草稿

本次CPU支持add, sub, or, ori, lw, sw, lb, lbu, lh, sb, sh, beq, lui, nop，begz，bgtz，blez，bltz，bne, j, jal, jr共23条指令。

mips.v (Top)

mips

Ports

Port name	Direction	Type	Description
clk	input
reset	input

Signals

Name	Type	Description
pc	wire [31:0]
if_jump	wire
if_branch	wire
instr_out	wire [31:0]
ifu_offset	wire [31:0]
OPCODE	wire [5:0]
FUNCT	wire [5:0]
RS	wire [4:0]
RT	wire [4:0]
RD	wire [4:0]
SHAMT	wire [4:0]
IMM	wire [15:0]
INDEX	wire [25:0]
bOp_out	wire [5:0]
RegDst_out	wire [1:0]
ALUSrc_out	wire
Mem2Reg_out	wire [1:0]
RegWrite_out	wire
MemWrite_out	wire
branch_out	wire
ExtOp_out	wire [1:0]
ALUOP_out	wire [1:0]
jumpSrc_out	wire [1:0]
dm_data	wire [31:0]
ext_ext32	wire [31:0]
grf_RD1	wire [31:0]
grf_RD2	wire [31:0]
alu_B	wire [31:0]
alu_C	wire [31:0]
grf_WA	wire [4:0]
grf_WD	wire [31:0]
jumpext_ext32	wire [31:0]

Instantiations

ifu: IFU
controller: Controller
grf: GRF
alu: ALU
dm: DM
ext: EXT
jumpext: jumpEXT
bcheck: bCheck

IFU.v

IFU

Ports

Port name	Direction	Type
clk	input
reset	input
jump	input
branch	input
offset	input	[31:0]
PC	output	[31:0]
Instr	output	[31:0]

Controller.v

Controller

Ports

Port name	Direction	Type
OpCode	input	[5:0]
Funct	input	[5:0]
rt	input	[4:0]
jump	output
jumpSrc	output	[1:0]
bOp	output	[5:0]
RegDst	output	[1:0]
ALUSrc	output
Mem2Reg	output	[1:0]
RegWrite	output
MemWrite	output
branch	output
ExtOp	output	[1:0]
ALUOP	output	[1:0]

信号映射表

	OpCode	Funct	RT
add	000000	100000
sub	000000	100010
or	000000	100101
SLL	000000	000000
SRL	000000	000010
SRA	000000	000011
ori	001101
lw	100011
sw	101011
lb	100000
lbu	100100
lh	100001
sb	101000
sh	101001
beq	000100
lui	001111
bgez	000001		00001
bgtz	000111
blez	000110
bltz	000001
bne	000101		00000
jump	000010
jal	000011
jr	000000	001000

	add	sub	ori	SLL	SRL	SRA	or	lw	sw	lb	lbu	lh	sb	sh	branch	lui	jump	jal	jr
RegDst	01	01	00	01	01	01	01	00	00	00	00	00	00	00	00	00	00	11(const31)	00
ALUSrc	0	0	1	0	0	0	0	1	1	1	1	1	1	1	1	1	0	0	0
Mem2Reg	00	00	00	00	00	00	00	01	00	01	01	01	00	00	00	00	00	10(PC + 4)	00
RegWrite	1	1	1	1	1	1	1	1	0	1	1	1	0	0	0	1	0	1	0
MemWrite	0	0	0	0	0	0	0	0	1	0	0	0	1	1	0	0	0	0	0
branch	0	0	0	0	0	0	0	0	0	0	0	0	0	0	1	0	0	0	0
ExtOp	00	00	01(zero)	0	0	0	00	]10(signed)	10(signed)	10	10	10	10	10	10(signed)	10(signed)	00	0	0
ALUOP<3,0>	0000	0001	0010	0100	0101	0110	0010	0000(+)	0000(+)	0000	0000	0000	0000	0000	0000(+)	0011	0000	0000	0000
jumpSrc	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	00	01	01	10
jump	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	0	1	1	1
ls_type								00	00	01	10	11	01	11

GRF.v

GRF

Ports

Port name	Direction	Type
A1	input	[4:0]
A2	input	[4:0]
A3	input	[4:0]
WD	input	[31:0]
clk	input
reset	input
WE	input
pc	input	[31:0]
RD1	output	[31:0]
RD2	output	[31:0]

DM.v

Ports

Port name	Direction	Type
A	input	[31:0]
D_input	input	[31:0]
str	input
clk	input
pc	input	[31:0]
D_output	output	[31:0]

ALU.v

ALU

Ports

Port name	Direction	Type
A	input	[31:0]
B	input	[31:0]
shamt	input	[4:0]
F	input	[3:0]
C	output	[31:0]

bCheck.v

bCheck

Ports

Port name	Direction	Type
Grs	input	[31:0]
Grt	input	[31:0]
bOp	input	[5:0]
branch	input
check	output

EXT.v

EXT

Ports

Port name	Direction	Type
imm16	input	[15:0]
ExtOp	input	[1:0]
ext32	output	[31:0]

jumpEXT.v

jumpEXT

Ports

Port name	Direction	Type
index	input	[25:0]
pc	input	[31:0]
ext32	output	[31:0]

测试方案

利用魔改Mars： 直接比较ISE得输出和Mars的输出
***课上环境：***在Isim中将32个Reg和内存添加到波形图中，对比最终结果

简单的测试代码：

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
#GRF REG_WRITE TEST
ori $1, 125
ori $2, 300
ori $3, $0, 5
ori $4, $0, 1024
ori $5, $0, 56
ori $6, $0,125
ori $7, $0, 525
ori $8, $0, 10086
ori $9, $0,14514
ori $10, $0, 625
ori $11, $0, 168
ori $12, $0, 576
ori $13, $0, 2048
ori $14, $0, 6666
ori $15, $0, 424
ori $16, $0, 2024
ori $16, $0, 1101
ori $17, $0, 2203
ori $18, $0, 2306
ori $19, $0, 999
ori $20, $0, 2005
ori $21, $0, 0
ori $22, $0, 176
ori $23, $0, 616
ori $24, $0, 1213
ori $25, $0, 1314
ori $26, $0, 888
ori $27, $0, 545
ori $28, $0, 28

#LUI TEST
lui $1, 424
lui $12, 500
lui $24, 233

#ADD or SUB TEST
add $21, $27, $28
sub $21, $27, $28

#MEMORY TEST
sw $21, 0($0)
lw $28, 0($0)

#BRANCH TEST
beq $24, $25, beq_label_false
ori $24, $0, 1314
beq $24, $25, beq_label_true

beq_label_false:
ori $5, $0, 666

beq_label_true:
ori $5, $0, 667

#JUMP TEST
jal function
ori $5, $0, 0
ori $5, $0, 1
ori $5, $0, 9
j jump_label

function:
ori $5, $0, 1111
jr $ra

jump_label:
nop
nop
nop

bgez $0, bgez_label
ori $1, $0, 11451

bgez_label:
ori $1, $0, -10
bltz $1, bltz_label
ori $5, $0, 1314
ori $6, $0, 156

bltz_label:
bne $0, $1, bne_label
ori $5, $0, 131
ori $6, $0, 15

bne_label:
lui $12, 2333

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
//STDOUT
@00003000: $ 1 <= 0000007d
@00003004: $ 2 <= 0000012c
@00003008: $ 3 <= 00000005
@0000300c: $ 4 <= 00000400
@00003010: $ 5 <= 00000038
@00003014: $ 6 <= 0000007d
@00003018: $ 7 <= 0000020d
@0000301c: $ 8 <= 00002766
@00003020: $ 9 <= 000038b2
@00003024: $10 <= 00000271
@00003028: $11 <= 000000a8
@0000302c: $12 <= 00000240
@00003030: $13 <= 00000800
@00003034: $14 <= 00001a0a
@00003038: $15 <= 000001a8
@0000303c: $16 <= 000007e8
@00003040: $16 <= 0000044d
@00003044: $17 <= 0000089b
@00003048: $18 <= 00000902
@0000304c: $19 <= 000003e7
@00003050: $20 <= 000007d5
@00003054: $21 <= 00000000
@00003058: $22 <= 000000b0
@0000305c: $23 <= 00000268
@00003060: $24 <= 000004bd
@00003064: $25 <= 00000522
@00003068: $26 <= 00000378
@0000306c: $27 <= 00000221
@00003070: $28 <= 0000001c
@00003074: $ 1 <= 01a80000
@00003078: $12 <= 01f40000
@0000307c: $24 <= 00e90000
@00003080: $21 <= 0000023d
@00003084: $21 <= 00000205
@00003088: *00000000 <= 00000205
@0000308c: $28 <= 00000205
@00003094: $24 <= 00000522
@000030a0: $ 5 <= 0000029b
@000030a4: $31 <= 000030a8
@000030b8: $ 5 <= 00000457
@000030a8: $ 5 <= 00000000
@000030ac: $ 5 <= 00000001
@000030b0: $ 5 <= 00000009
@000030d4: $ 1 <= ffff0000
@000030d8: $ 1 <= fffffff6
@000030dc: $ 1 <= fffffff6
@000030f8: $12 <= 091d0000

思考题

阅读下面给出的 DM 的输入示例中（示例 DM 容量为 4KB，即 32bit × 1024字），根据你的理解回答，这个 addr 信号又是从哪里来的？地址信号 addr 位数为什么是 [11:2] 而不是 [9:0] ？
addr信号来源于ALU的结果输出端。
输入信号为按字节索引的地址，而DM的存储方式为按字索引，取addr[11:2]即等于addr[9:0] « 2

思考上述两种控制器设计的译码方式，给出代码示例，并尝试对比各方式的优劣。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
	always @(*) begin
		if (OpCode == 6'b000000) begin
			if (Funct == 6'b100000) begin
				//add
				RegDst 	<= 2'b01;
				ALUSrc 	<= 1'b0;
				Mem2Reg 	<= 2'b00;
				RegWrite <= 1'b1;
				MemWrite <= 1'b0;
				branch 	<= 1'b0;
				ExtOp 	<= 2'b00;
				ALUOP 	<= 2'b00;
				jumpSrc 	<= 2'b00;
				jump  	<= 1'b0;
			end
		end

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
always @(*) begin
    if (OpCode == 6'b100011 ||
        OpCode == 6'b101011 ||
        OpCode == 6'b000100 ||
        OpCode == 6'b001111) begin
    	ExtOp <= 2'b10;
    end
    else if (OpCode == 6'b001101) begin
       ExtOp <= 2'b01;
    end
    else begin
        ExtOp <= 2'b00;
    end
end

记录指令对应的控制信号如何取值：方便添加新指令。
记录控制信号每种取值所对应的指令：方便添加控制信号。

在相应的部件中，复位信号的设计都是同步复位，这与 P3 中的设计要求不同。请对比同步复位与异步复位这两种方式的 reset 信号与 clk 信号优先级的关系。
异步复位reset信号优先，同步复位clk信号优先。
C 语言是一种弱类型程序设计语言。C 语言中不对计算结果溢出进行处理，这意味着 C 语言要求程序员必须很清楚计算结果是否会导致溢出。因此，如果仅仅支持 C 语言，MIPS 指令的所有计算指令均可以忽略溢出。请说明为什么在忽略溢出的前提下，addi 与 addiu 是等价的，add 与 addu 是等价的。提示：阅读《MIPS32® Architecture For Programmers Volume II: The MIPS32® Instruction Set》中相关指令的 Operation 部分。
The term “unsigned” in the instruction name is a misnomer; this operation is 32-bit modulo arithmetic that does not trap on overflow. This instruction is appropriate for unsigned arithmetic, such as address arithmetic, or integer arithmetic environments that ignore overflow, such as C language arithmetic.
addu和add的区别、addi和addiu的区别均仅在与是否有溢出判断，故忽略溢出时效果是一样的。
